Dual Configuration Platform
Combines box-type fixed metal closed switchgear and air insulated load switchgear in one product platform.

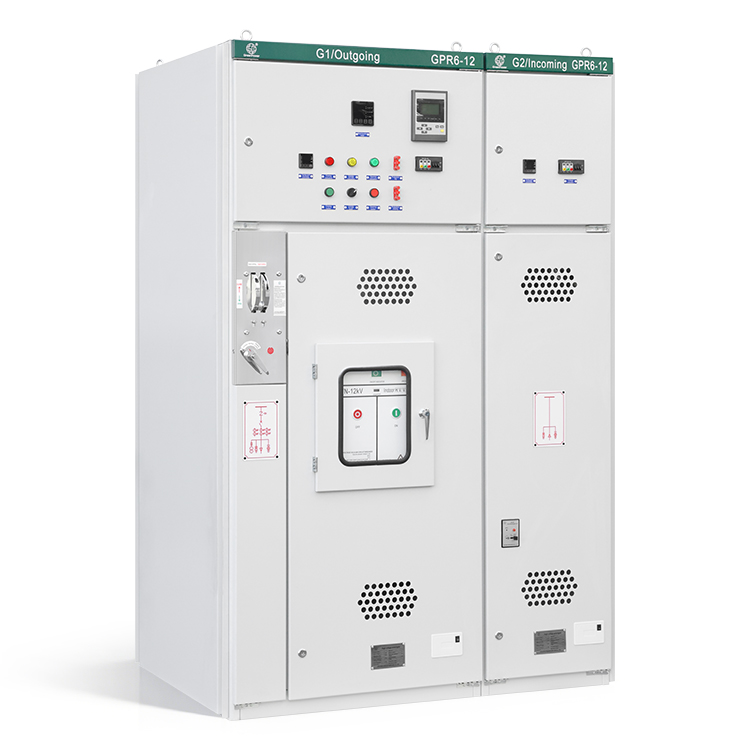

GreenPower
GPR6-12kV
Air Insulated
Ring Main Unit
Rated Voltage3 / 6 / 10 kV
Max Working Voltage12 kV
Rated Current630–2500 A
Protection DegreeIP2X
Product Overview
GPR6-12 series consists of two parts: box-type fixed metal closed switchgear and air insulated load switchgear (or half-insulated switchgear). It integrates high-voltage switchgear, power distribution devices, and protection functions. It has compact structure, flexible operation, and safe and reliable operation. It is mainly used in 3, 6, and 10 kV three-phase AC 50 Hz systems for receiving and distributing electric energy. It is especially suitable for frequent operations. The busbar system is single bus and can derive single-line bus bypass and double busbar structure. The box-type fixed metal closed switchgear uses GPVN-12 series vacuum circuit breakers with CT series spring operating mechanism, and uses GN30-12 rotating switch and GN19-12 high-current isolating switch. The air insulated load switchgear uses FLN or ABB-SFG SF6 load switch as the main switch.
Compact And Flexible Operation
Designed with compact structure, flexible operation, and reliable service for medium-voltage distribution duty.
Key Features
Integrated Distribution Function
Integrates high-voltage switchgear, power distribution devices, and protection functions.
Compact Structure
Compact cabinet structure supports convenient installation and reduced footprint.
Flexible Operation
Designed for flexible and simple operation in frequent switching applications.
Safe And Reliable Operation
Supports safe, stable, and reliable operation in medium-voltage systems.
Single Busbar Architecture
Uses a single busbar system and can derive single-line bypass or double busbar structure.
Five-Defense Interlocking
Includes mechanical interlocking functions described for safe switching sequence control.
Pressure Relief Channel
The circuit breaker chamber is equipped with a pressure release channel for internal arc pressure discharge.
Combination Flexibility
Cabinets can be freely combined, expanded, and assembled according to design requirements.
Technical Specifications
| Rated Voltage | 3 / 6 / 10 kV |
|---|---|
| Maximum Working Voltage | 3.6 / 7.2 / 12 kV |
| Rated Current | 630–2500 A |
| Rated Breaking Current | 20 / 31.5 / 40 kA |
| Rated Thermal Stable Current | 20 / 31.5 / 40 kA |
| Rated Dynamic Stable Current | 50 / 80 / 100 kA |
| Rated Closing Current | 50 / 80 / 100 kA |
| Thermal Stabilization Time | 4 s |
| Protection Degree | IP2X |
| Busbar System | Single busbar |
| Operation Method | Electromagnetic type, spring energy storage type |
| Overall Dimensions (W × D × H) | 900 × 1900 × 2200 mm (below 1000 A) |
Ambient Conditions
Altitude
No more than 1000 m.
Ambient Temperature
Maximum +40℃ and minimum -25℃.
Relative Humidity
Daily average not greater than 95%, monthly average not greater than 90%.
Water Vapor Pressure
Daily average not greater than 2.2×10-3 MPa and monthly average not more than 1.8×10-3 MPa.
Seismic Intensity
No more than 8 degrees.
Installation Environment
Use in places without risk of fire, explosion, serious pollution, chemical corrosion, or severe vibration.
Cabinet Structure
The switchgear has a metal closed box structure with a cabinet frame welded by angle steel. The cabinet is divided into a circuit breaker room, busbar room, cable room, and relay room, with rooms separated by steel plates.
The circuit breaker room includes a pressure release channel. The busbar room is arranged in the upper rear part of the cabinet, while the cable room is located behind the lower part of the cabinet. The switchgear is maintained from both front and rear sides, and a grounding copper busbar is arranged under the front door.
Incoming And Outgoing Cabinet Outline Diagrams
The GPR6-12 air insulated load switchgear appearance and structure are shown with separate outgoing and incoming cabinet outline diagrams, including the busbar room, low-voltage operation room, load switch room, and cable room.

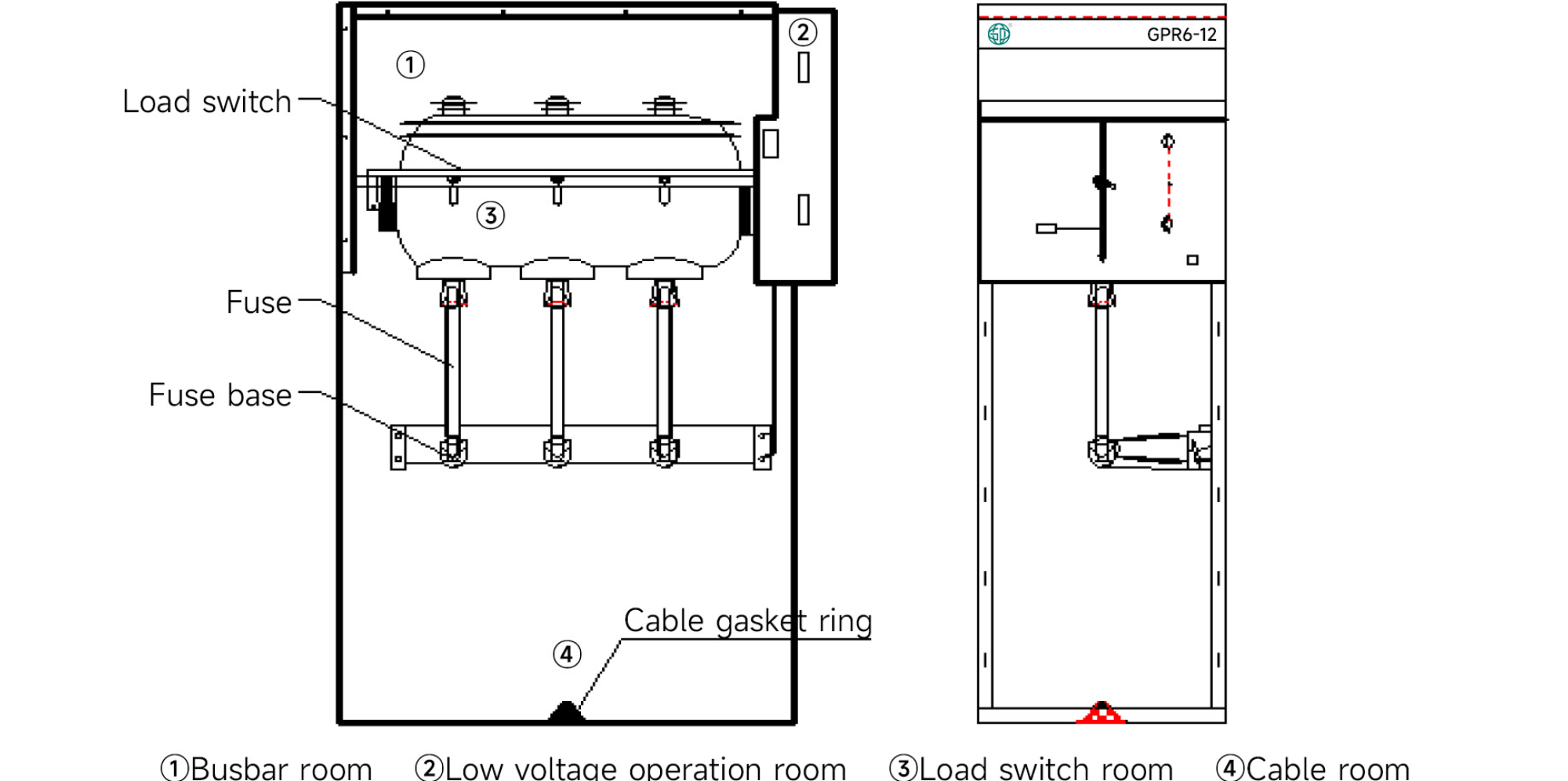

GPR6-12kV Outgoing Cabinet Outline

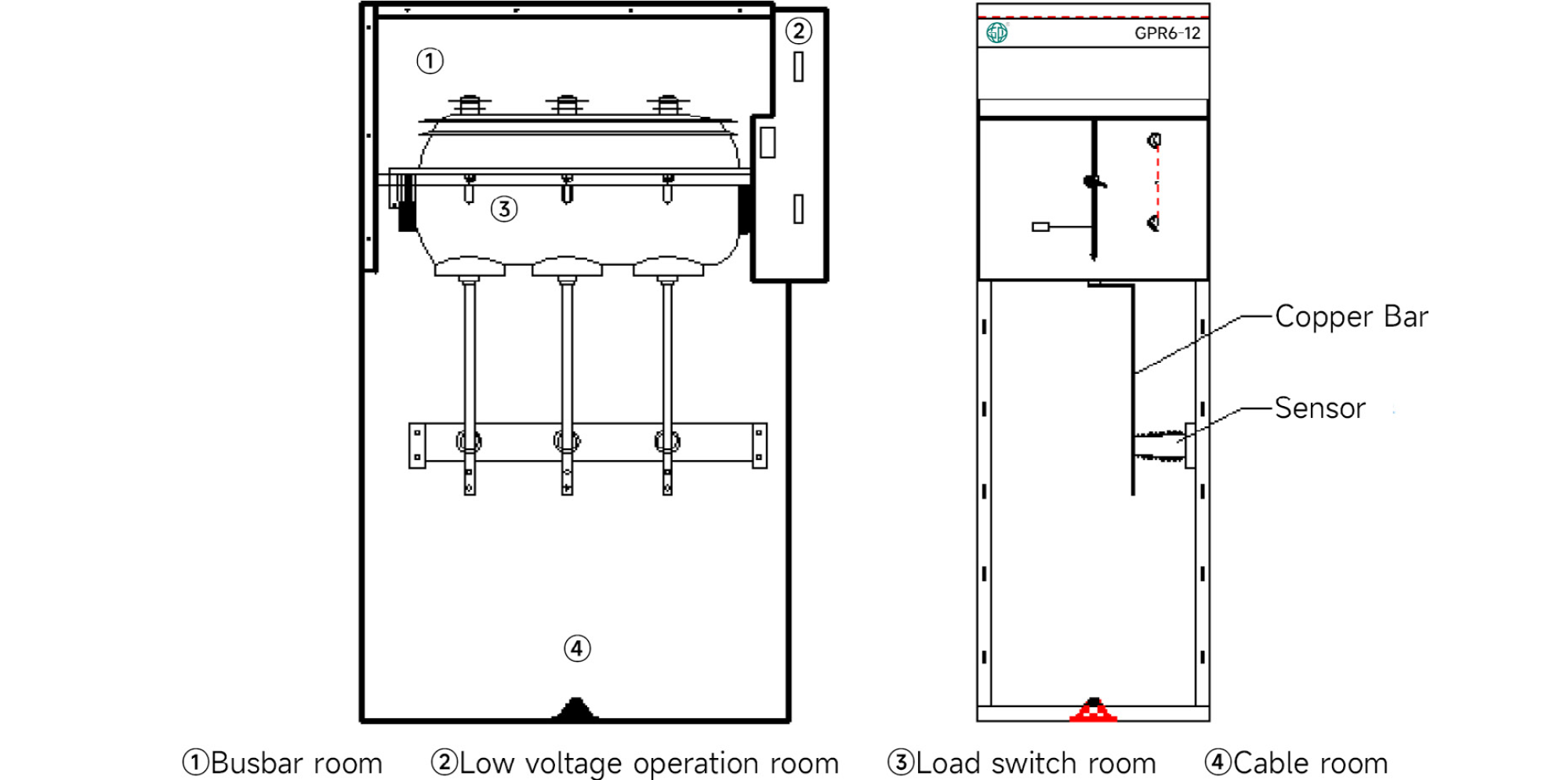

GPR6-12kV Incoming Cabinet Outline
Standards And Compliance
| GB3906 | 3.6–40.5kV AC metal closed switchgear |
|---|---|
| IEC298 | International standard referenced in the brochure |
| Verification | Tested through the National High Voltage Electrical Detection Center |
Typical Applications
Power Stations
Suitable for small and medium-sized power stations.
Industrial Facilities
Applicable in industrial factories with medium-voltage distribution needs.
Commercial Buildings
Suitable for commercial building power distribution applications.
Frequent Operations
Especially suitable for systems with frequent switching operations.
