GPN2S-40.5 — Standard Type
100% SF6 insulated, high performance and easy to use.
GreenPower

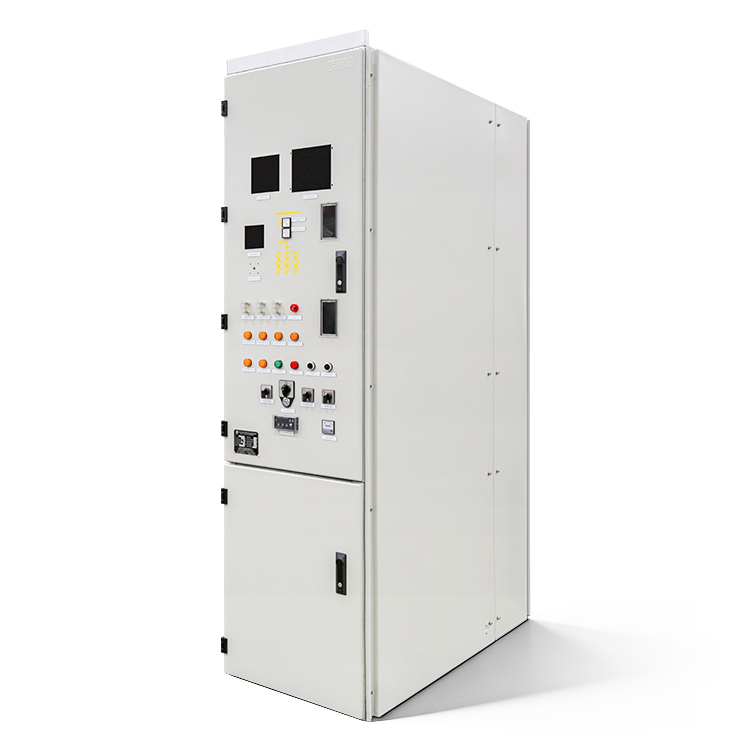

GPN2-40.5kV Cubicle Type Gas Insulated Switchgear (CGIS)
Rated Voltage36 / 38 / 40.5 kV
Rated Current1250 / 2500 / 3150 A
Frequency50 / 60 Hz
Protection DegreeGas Tank IP65, Enclosure IP4X
Product Overview
GPN2-40.5kV cubicle type gas insulated switchgear (CGIS) is an indoor, factory-assembled, metal-enclosed switchgear for 40.5kV single busbar applications. It is available in three versions to suit different insulation and environmental requirements.
GPN2E-40.5 — Green Type
Mixed gas insulated (SF6+N2) with vacuum breakers, reduced SF6 by 50%.
GPN2N-40.5 — SF6-Free Type
Pure nitrogen insulation, zero SF6 emission, genuine green environmental protection.
Key Features
Reduced Greenhouse Gas Emissions
Available with 50% or 100% SF6 reduction using nitrogen mixed gas or pure nitrogen insulation technology.
70% Reduction In Switchroom Size
Optimized electric field design results in compact switchgear saving 70% space vs air-insulated switchgear.
Reliable Electrical And Mechanical Interlocks
Interlocks between circuit breaker and three-position switch prevent misoperation.
Maximum Operator Safety
Minimum functional pressure 0.00 MPa (20℃); rated insulation level maintained even under gas leakage conditions.
Easy Installation And Extension
Modular panel design with plug-in connectors; middle panels removable for maintenance without moving neighbouring panels.
Low Gas Pressure Operation
Operates normally at zero gauge pressure; switchgear can remain energized even if gas escapes.
Vacuum Switching Technology
Arc limited in vacuum interrupter, reducing insulation gas exhaust volume; high performance in frequent switching applications.
Embedded Pole VCB Design
Three-phase embedded poles arranged vertically in circuit breaker gas tank; APG epoxy molding process for high insulation level.
Suitable For Harsh Industries
Suitable for power networks, mining, rail transportation, petrochemical plants, wind farms, and metropolitan rail systems.
Digital Manufacturing And Auto Testing
Modern digital manufacturing with automatic testing coupled with sensor, monitor and protection technology.
Easy Retrofitting
Can be retrofitted into existing switchroom; reduces cost of substation land.
IP65 Gas Tank Protection
Gas tank rated IP65; enclosure rated IP4X.
Insulation Gas Options
Standard Type: 100% SF6
High-performance SF6 insulation, proven reliability, easy maintenance.
Green Type: SF6 + N2 Mixed Gas
50% SF6 reduction with nitrogen mixed gas insulation; full rated performance maintained.
SF6-Free Type: Pure Nitrogen
Zero SF6 emission, pure nitrogen insulation, non-toxic arc decomposition products.
Technical Specifications
| Item | Standard Type GPN2S-40.5 |
Green Type GPN2E-40.5 |
Green Type GPN2N-40.5 |
|---|---|---|---|
| Rated Voltage | 36 / 38 / 40.5 kV | 36 / 38 / 40.5 kV | 36 / 38 / 40.5 kV |
| Rated Current | 1250, 2500, 3150 A | 1250, 2500 A | 1250, 2500 A |
| Rated Short-Circuit Breaking Current | 20 / 25 / 31.5 kA | 20 / 25 / 31.5 kA | 31.5 kA |
| Rated Short Circuit Making Current (peak) | 50 / 63 / 80 kA | 50 / 63 / 80 kA | 80 kA |
| Rated Short Time Withstand Current | 20/3, 25/3, 31.5/3 s kA | 20/3, 25/3, 31.5/3 s kA | 31.5/3 s kA |
| Rated Peak Withstand Current | 50 / 63 / 80 kA | 50 / 63 / 80 kA | 80 kA |
| Insulation Gas | 100% SF6 | 50% SF6 + 50% N2 | 100% N2 |
| Annual Leakage Rate | ≤ 0.1 %/Y | ≤ 0.1 %/Y | ≤ 0.1 %/Y |
| Rated Gas Pressure (abs, 20℃) | 0.12 MPa | 0.12 MPa | 0.12 MPa |
| Gas Tank Protection | IP65 | IP65 | IP65 |
| Enclosure Protection | IP4X | IP4X | IP4X |
| Dimension 1250A (W×D×H) | 600×1600×2400 mm | 600×1500×2400 mm | 800×1700×2300 mm |
| Dimension 2500A (W×D×H) | 800×1600×2400 mm | 800×1500×2400 mm | 900×1700×2300 mm |
| Weight 1250A | 800~1000 kg | 800~1000 kg | 800~1000 kg |
| Weight 2500A | 1100~1400 kg | 1100~1400 kg | 1100~1400 kg |
Ambient Conditions
Ambient Temperature
-25℃ ~ +45℃, daily average maximum +35℃
Altitude
≤ 1000m standard; special conditions available on request
Relative Humidity
Daily average ≤ 95%, monthly average ≤ 90%
Earthquake Intensity
≤ 8 degree
Applicable Occasions
Free from significant dust, smoke, corrosive or flammable gases, vapours or salt
Available Plan Options
| Type | Rated Current | Width × Depth × Height |
|---|---|---|
| GPN2S-40.5 Standard | 1250A | 600 × 1600 × 2400 mm |
| GPN2S-40.5 Standard | 2500~3150A | 800 × 1600 × 2400 mm |
| GPN2E-40.5 Green | 1250A | 600 × 1500 × 2400 mm |
| GPN2E-40.5 Green | 2500A | 800 × 1500 × 2400 mm |
| GPN2N-40.5 Green | 1250A | 800 × 1700 × 2300 mm |
| GPN2N-40.5 Green | 2500A | 900 × 1700 × 2300 mm |
Standards And Compliance
| Standards | |
|---|---|
| Applicable Standards | GB 3906; GB/T 11022; DL/T404; IEC 62271-200; GB 11022; IEC 62271-1 |
| Referenced Tests | |
|---|---|
| Summary | Type test per IEC and GB standards; digital manufacturing with automatic testing |
Typical Applications
Power Networks
Utility-scale power distribution and grid reinforcement projects.
Rail Transportation
Suitable for metropolitan rail systems and railway infrastructure.
Petrochemical Plants
Safe and reliable operation in petrochemical and industrial process environments.
Mining
Reliable switchgear for demanding underground and surface mining environments.
Wind Farms
Compact and reliable switchgear for wind farm power collection systems.
Retrofit Projects
Easy retrofitting into existing switchroom without major civil works.
Request Technical Confirmation For GPN2-40.5kV
Share your required insulation type, rating, or configuration for quotation review.
