Busbar Arrangement
Single busbar or single busbar sectionalizing system.
GreenPower

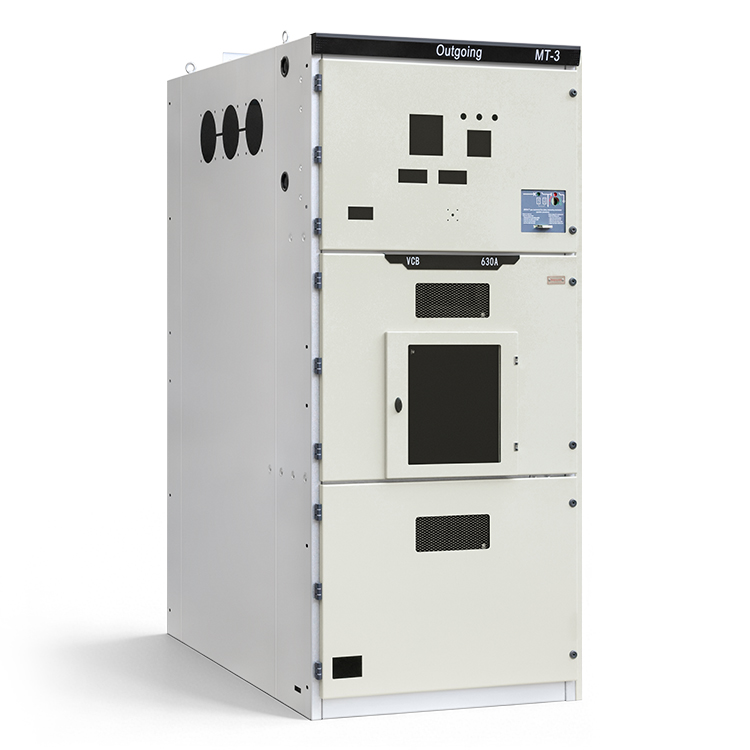

GPN1-24kV Removable AC Metal-Clad Enclosed Switchgear
Rated Voltage24 kV
Rated Current630~4000 A
Frequency50/60 Hz
Protection DegreeEnclosure IP4X, door open IP2X
Product Overview
GPN1-24kV removable AC metal-clad enclosed switchgear is designed and developed based on the introduction of advanced foreign design and manufacturing technology. It applies to 3.6~24kV, 3-phase AC, 50Hz or 60Hz networks for receiving and distributing power energy, and also for control, monitor and protection. It can be arranged for single busbar and single busbar sectionalizing system. It has reliable prevention function against false operation.
Application Duty
For receiving and distributing power energy, and for control, monitor and protection.
Key Features
Mechanical Strength And Dimensional Accuracy
The structure has high dimensional accuracy, short production cycle, good mechanical strength, and neat appearance.
Aluminum-Zinc Plated Steel Enclosure
The enclosure is made of aluminum-zinc plated steel sheet processed by CNC machine and multi-bending.
Cable Compartment Equipment
Current transformer and earthing switch can be mounted on the back wall of the cable compartment, while potential transformer and lightning arrester can be mounted inside it.
Position Locating Device
Each handcart position is equipped with a locating device to avoid random movement in the specified position.
Guide Rail Arrangement
A special guide rail is installed in the CB compartment for movement between isolating/testing position and working position.
Movable Curtain Plate
An insulating movable curtain plate is installed on the back wall of the handcart compartment.
Handcart Types
The handcart frame can be configured as CB handcart, PT handcart, measuring handcart, and similar arrangements.
Meter Compartment
The meter compartment includes relay components, meters, electrified indicator, and specified secondary equipment.
Busbar Connection
The main busbar and inter busbar use copper bars, connected through insulation bushings and fixed contact boxes.
Handcart Positions
The handcart has isolating/testing position and working position inside the cubicle.
Control Circuit Space
Control circuits are laid in the neck grave with sufficient space and metal cover plate.
Technical Specifications
| Rated Voltage | 24 kV |
|---|---|
| Rated Frequency | 50/60 Hz |
| Rated Current | 630, 1250, 1600, 2500, 3150, 4000 A |
| Rated Insulation Level / 1min Power Frequency Withstand Voltage (phase to earth / across open contacts) | 65 kV |
| Lightning Impulse Withstand Voltage (phase to earth / across open contacts) | 125 kV |
| Rated Short Time Withstand Current (4s) | 20, 25, 31.5 kA |
| Rated Peak Withstand Current | 50, 63, 80 kA |
| Rated Symmetrical Short-Time Breaking Current | 20, 25, 31.5 kA |
| Protection Degree | Enclosure IP4X, door open IP2X |
| Outline Dimension (width × depth × height) | 1000 (800) × 1820 (1500) × 2430 (2300) mm |
| Weight | 1200~1500 kg |
Ambient Conditions
Ambient Temperature
-25℃ ~ +45℃, daily average ≤ 35℃
Altitude
1000m (Standard); can up to 4500m for special ordering
Relative Humidity
Daily average ≤ 95%, monthly average ≤ 90%
Earthquake Intensity
≤ 8 degree
Applicable Occasions
Should be free from inflammables, explosives, corrosives and severe vibration.
Structure Schematic Drawing
GPN1-24kV Feeder Panel
Technical Specifications
GPVN-24kV Vacuum Circuit Breaker
| Rated Voltage | 24 kV |
|---|---|
| Rated Frequency | 50/60 Hz |
| Rated Current | 630, 1250, 1600, 2500, 3150, 4000 A |
| Rated Insulation Level / 1min Power Frequency Withstand Voltage (phase to earth / across open contacts) | 65 kV |
| Lightning Impulse Withstand Voltage (phase to earth / across open contacts) | 125 kV |
| Rated Short Time Withstand Current (4s) | 20, 25, 31.5 kA |
| Rated Peak Withstand Current | 50, 63, 80 kA |
| Rated Symmetrical Short-Time Breaking Current | 20, 25, 31.5 kA |
| Rated Operating Sequence | O-0.3s-CO-180s-CO |
| Opening Time | 60 ms |
| Arcing Time | 15 ms |
| Breaking Time | 65 ms |
| Control Voltage | ~110~220 V |
Standards And Compliance
| Applicable Standards | IEC298; IEC 694; GB3906; DL404; DIN; VDE0670 |
|---|
Typical Applications
The brochure scope covers receiving and distributing power energy, and also control, monitor and protection duties in medium-voltage networks.
Receiving And Distributing Power Energy
For receiving and distributing power energy.
Control, Monitor And Protection
For control, monitor and protection.
Medium-Voltage Power Networks
For medium-voltage power network duties within the brochure scope.
Indoor Distribution Panels
For indoor distribution panel arrangement within the cubicle structure.
