Single-Pole Electric Operation

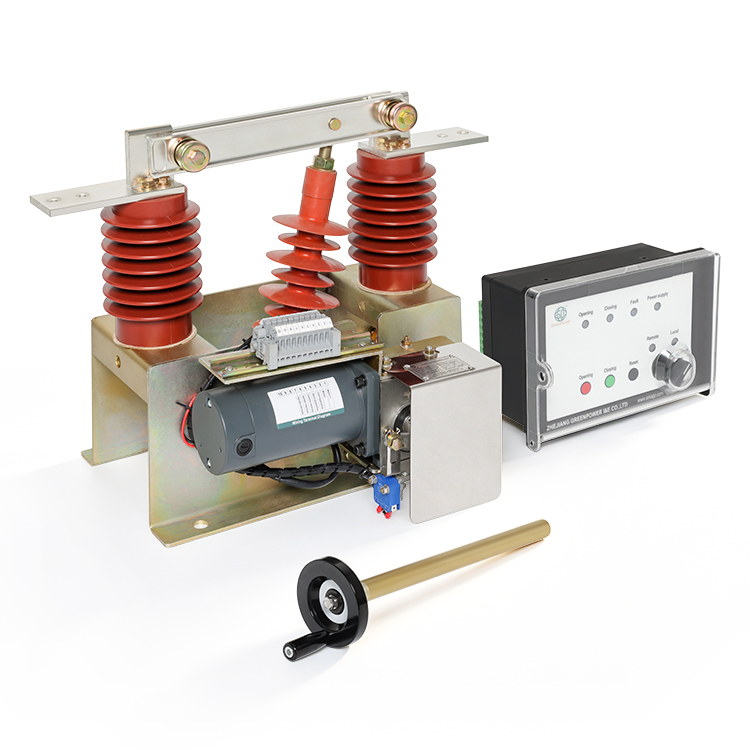

Single-pole disconnector with an integrated electric mechanism and a common chassis. The rotating shaft drives the main switch to open and close through the tie rod insulator.
GreenPower
GN19-12 Indoor High Voltage Disconnector
Rated Voltage10 / 12 kV
Rated Current800 / 1000 / 1250 / 2000 / 2500 A
OperationElectric and Manual
InstallationIndoor
Product Overview
GN19-12 series indoor high voltage disconnectors are suitable for DC systems with a rated voltage of 12kV. They are used to disconnect and close circuits when voltage is present but no load current is present. This series of products generally have a single pole electric operation for the main blade, and the knife switch adopts electric operation.
CJN Series Electric Operating Mechanism
Suitable for operating high-voltage disconnectors or earthing switches with rated voltages of 12kV and 40.5kV. Can perform opening and closing operations locally or remotely, and is equipped with a manual operating handle for installation, commissioning, and necessary operations.
Key Features
Integrated Electric Mechanism
Single-pole disconnector with an integrated electric mechanism and common chassis; the rotating shaft drives the main switch to open and close through the tie rod insulator.
Local And Remote Operation
The mechanism can perform opening and closing operations locally or remotely; equipped with a manual operating handle for installation, commissioning, and operation when necessary.
Electrical Interlocking
Control principle can achieve electrical interlocking with on-site circuit breakers, grounding switches, and other equipment to ensure correct coordination of operation timing.
Dual Protection
Equipped with dual protection of opening and closing electrical interlocking and mechanical limit, ensuring that the rotation angle of the spindle is limited to the accurate opening and closing position.
Manual Override
Equipped with a manual operating handle; when the handle is activated, it automatically locks the electric operation to ensure the safety of the operator.
Model Variants
D1 — Dynamic Contact Grounding
Grounding at the dynamic contact end. Please specify grounding form D1 when ordering.
D2 — Static Contact Grounding
Grounding at the static contact end. Please specify grounding form D2 when ordering. According to user needs, can be processed into a single pole split or a two-phase common chassis type.
Technical Specifications
| Item | Unit | Data |
|---|---|---|
| Rated Voltage | kV | 10 |
| Max Working Voltage | kV | 12 |
| Rated Current | A | 800 / 1000 / 1250 / 2000 / 2500 |
| Rated Short-Time Withstand Current | kA | 31.5 / 40 / 40 / 50 / 50 |
| Rated Peak Withstand Current | kA | 80 / 100 / 100 / 125 / 125 |
| Rated Short-Time Withstand Current Time (Main Knife) | s | 0.2 |
| Rated Short-Time Withstand Current Time (Grounding Knife) | s | 7 |
| 1min Power Frequency Withstand Voltage (to ground) | kV | 42 |
| 1min Power Frequency Withstand Voltage (to break) | kV | 48 |
CJN Electric Operating Mechanism Parameters
| Mechanism Model | CJN |
|---|---|
| Spindle Angle | 70° |
| Rated Output Torque | 0.79 N.m |
| Opening And Closing Time | 2~4 s |
| Control Voltage | AC/DC 220V |
| Motor Model | GDM80/160-150-220-18S |
| Motor Power | 0.15 kW |
| Motor Voltage | AC/DC 220V |
| Motor Speed | 2100 r/min |
| Motor Rated Current | 0.68 A |
Ambient Conditions
Altitude
Not exceeding 1000 m
Ambient Temperature
Not higher than +40℃, not lower than -20℃
Wind Speed
Indoor wind speed not exceeding 35 m/s
Seismic Intensity
Not exceeding 8 degrees
Applicable Occasions
Not suitable for locations with explosion and combustion hazards, severe vibrations and impacts, and severe corrosion of metals and insulation materials
Standards And Compliance
| GB1985 | AC High Voltage Disconnectors and Earthing Switches |
|---|---|
| GB11022 | General Technical Conditions for High Voltage Switchgear |
| DL486 | Technical Conditions for Ordering AC High Voltage Disconnectors |
Request Technical Confirmation For GN19-12
Please specify the model and specifications of the switch, the model of the operating mechanism, grounding form (D1 or D2), and control power supply voltage.
