Maintenance Earthing
The switch provides the earthing function within high-voltage switchgear for equipment maintenance. Match its installation and operating arrangement to the selected cabinet.
GreenPower
GPJN15-40.5kV Earthing Switch
Rated Voltage40.5 kV
Rated Frequency50 / 60 Hz
Phase Spacing280 / 300 / 350 / 360 / 400 mm
Standard Flexible Connection600 mm
Product Overview

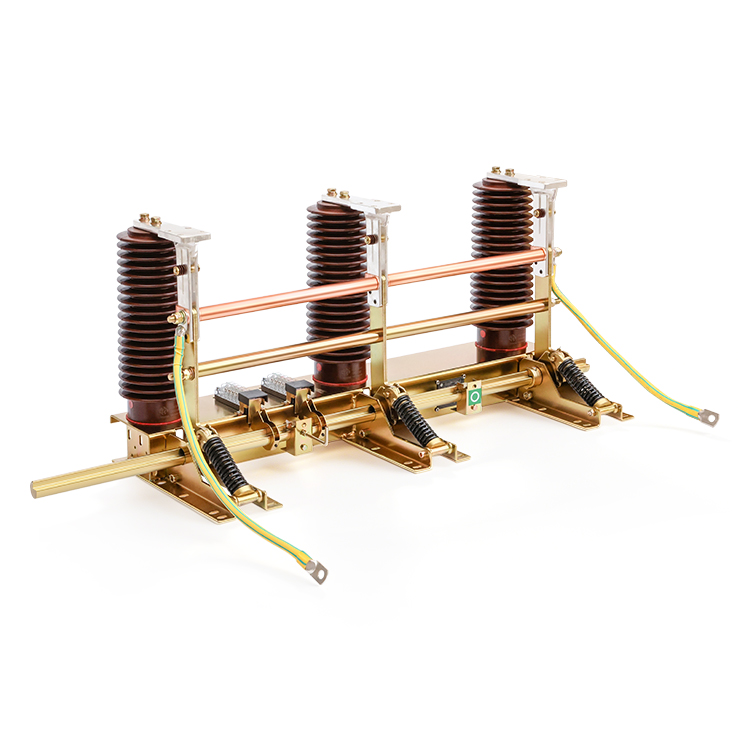

GPJN15-40.5/31.5 is an assembled indoor high-voltage earthing switch for 40.5 kV, three-phase, 50/60 Hz AC power systems. It is used as the earthing function during switchgear maintenance and can be arranged with GPN1-40.5kV switchgear or similar equipment. Five phase spacings and optional bevel-gear operation support different installation layouts.
40.5 kV Three-Phase Systems
Designed for indoor AC power systems at 50 or 60 Hz, with model variants identified by phase spacing for installation selection.
Key Features
GPN1-40.5kV Application
Designed for earthing protection in GPN1-40.5kV switchgear and similar equipment. Confirm mounting dimensions and operating interfaces for the selected cabinet.
Five Phase Spacings
Select 280, 300, 350, 360 or 400 mm phase spacing. For spacings below 360 mm, add an insulating plate between phases as specified in the catalog.
Bevel-Gear Operating Option
A bevel-gear operating mechanism can be specified when required. State the left or right operating direction to match the installation layout.
Technical And Configuration Data
| Parameter | Data |
|---|---|
| Model Family | GPJN15-40.5/31.5 |
| Rated Voltage | 40.5 kV |
| Rated Frequency | 50 / 60 Hz |
| System | Three-phase AC |
| Installation | Indoor |
| Standard Flexible Connection Length | 600 mm |
| Switchgear Application | GPN1-40.5kV and similar equipment, subject to installation and interface confirmation |
Model Selection And Installation
The model suffix identifies phase spacing in millimetres. Select the exact model and check the outline, mounting-hole and fixed-contact dimensions against the switchgear layout.
| Model | Phase Spacing | Standard Flexible Connection Length |
|---|---|---|
| GPJN15-40.5/31.5-280 | 280 mm | 600 mm |
| GPJN15-40.5/31.5-300 | 300 mm | 600 mm |
| GPJN15-40.5/31.5-350 | 350 mm | 600 mm |
| GPJN15-40.5/31.5-360 | 360 mm | 600 mm |
| GPJN15-40.5/31.5-400 | 400 mm | 600 mm |
For phase spacings below 360 mm, add an insulating plate between phases. Download the catalog for the complete outline, mounting-hole and fixed-contact drawings. Confirm any special dimensions with GreenPower before ordering.
Operating And Ordering Options
Bevel-Gear Operation
If a bevel-gear operating mechanism is required, specify left or right operation. Confirm the operating direction and access against the switchgear layout.
Connections And Live Indication
The standard flexible connection length is 600 mm; specify any extension required. State whether a live indicator is needed and provide its model when ordering.
Service Conditions
Altitude
Not exceeding 1000 m above sea level.
Ambient Temperature
-25°C to +45°C.
Relative Humidity
Daily average not exceeding 95%; monthly average not exceeding 90%.
Seismic Intensity
Not exceeding degree 8.
Pollution Class
Class II.
Special Service Conditions
Specify conditions outside the standard service limits when ordering so the configuration can be reviewed.
Standards Referenced
The catalog references GB1985-2004 and IEC 62271-102 for high-voltage AC disconnectors and earthing switches. Specify the required standard and edition for your project during technical confirmation.
- GB1985-2004
- IEC 62271-102
Request Technical Confirmation For GPJN15-40.5kV
Please specify the product model, rated voltage and phase spacing. Confirm any bevel-gear mechanism with left or right operation, the required flexible connection length, live indicator model and special installation or site conditions.
