Rotary Contact Construction
The contacts rotate within an upper-and-lower arrangement on a shared frame. This layout keeps the switch compact for installation in indoor switchgear.
GreenPower
GN30-12kV/24kVIndoor Rotary Disconnector
Rated Voltage12 kV / 24 kV
Rated Current - 12 kV630-3150 A
Rated Current - 24 kV400-1250 A
Earthing OptionD-type earthing version
Product Overview

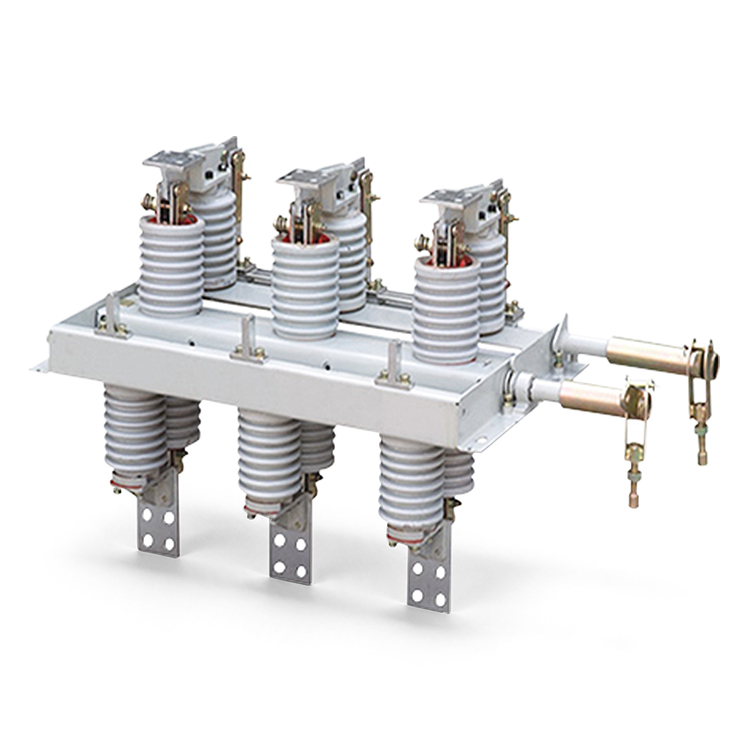

GN30 is an indoor rotary disconnector available in 12 kV and 24 kV versions. Two groups of insulators and contacts are mounted above and below a common three-phase frame, and rotating contacts open or close the circuit. The GN30-12(D) series covers 630-3150 A; the GN30-24(D) series includes 400, 630, 1000 and 1250 A versions. D-type models add an earthing blade.
No-Load Circuit Isolation
The disconnector provides circuit isolation when no load current is flowing. Select it for isolation duty and coordinate operation with the circuit breaker or other load-switching device.
Key Features
12 kV And 24 kV Versions
Select the voltage version first, then the required current rating. The current ranges and installation dimensions differ between the two series.
D-Type Earthing Versions
GN30-12D and GN30-24D add earthing blades to the corresponding standard switch. Specify the earthing arrangement with the required model and switchgear layout.
Switchgear Or Separate Installation
The rotary disconnector can be installed with indoor switchgear or used separately. Match the support, operating linkage and terminal positions to the installation.
Technical Specifications
GN30-12(D) - 12 kV
Rated frequency: 50 Hz. The ratings below apply to the standard and D-type earthing versions of the 12 kV series.
| Model | Rated Current | Short-Time Withstand (r.m.s.) | Peak Withstand |
|---|---|---|---|
| GN30-12(D)/630A | 630 A | 20 kA / 4 s | 50 kA |
| GN30-12(D)/1000A | 1000 A | 31.5 kA / 4 s | 80 kA |
| GN30-12(D)/1250A | 1250 A | 31.5 kA / 4 s | 80 kA |
| GN30-12(D)/2000A | 2000 A | 40 kA / 4 s | 100 kA |
| GN30-12(D)/2500A | 2500 A | 40 kA / 4 s | 100 kA |
| GN30-12(D)/3150A | 3150 A | 40 kA / 4 s | 100 kA |
GN30-24(D) - 24 kV
Rated frequency: 50 Hz. Current versions are listed below for the 24 kV series.
| Model | Rated Current |
|---|---|
| GN30-24(D)/400A | 400 A |
| GN30-24(D)/630A | 630 A |
| GN30-24(D)/1000A | 1000 A |
| GN30-24(D)/1250A | 1250 A |
Short-time, peak and insulation withstand ratings for GN30-24(D) must be confirmed for the selected configuration.
Standard And Earthing Configurations
GN30-12 And GN30-24
The standard versions use rotary contacts to make or break the isolation gap. Choose the voltage and current version to suit the circuit and installation space.
GN30-12D And GN30-24D
The D versions include an additional earthing blade. Confirm the blade arrangement, operating sequence and required interlocks with the selected assembly.
Installation And Operating Interfaces
Mounting And Terminals
The catalog includes separate outline and installation drawings for GN30-12(D), GN30-24 and GN30-24D. Use the drawing matching the voltage, rated current and earthing version.
Operating Linkage
Specify the operating mechanism and linkage arrangement with the switch. Check the mounting surface, terminal connections and full contact travel against the switchgear layout.
Service Conditions
Ambient Temperature
-10°C to +40°C for the general indoor configuration.
Altitude
Not exceeding 1000 m above sea level.
Relative Humidity
Daily average not exceeding 95%; monthly average not exceeding 90%.
Water-Vapour Pressure - 12 kV
The 12 kV section specifies daily average up to 2.2 kPa and monthly average up to 1.8 kPa.
Seismic Intensity - 24 kV
The 24 kV section specifies a limit of degree 8.
Installation Environment
Indoor locations without fire or explosion hazards, serious pollution, chemical corrosion or severe vibration.
The 12 kV section also lists a -25°C lower limit for cold-region arrangements. Confirm this requirement separately; the normal ambient range above applies to the general configuration.
Specify Your GN30 Disconnector
Send the voltage version, rated current and required fault withstand ratings. Include the earthing requirement, switchgear layout, operating linkage and available installation space so the correct model and drawing can be selected.
